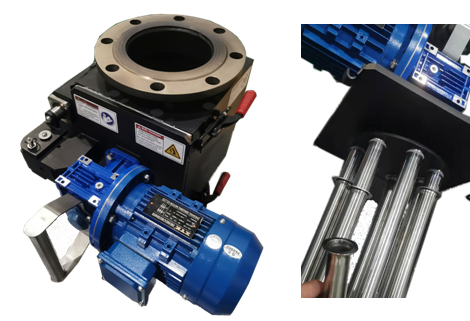

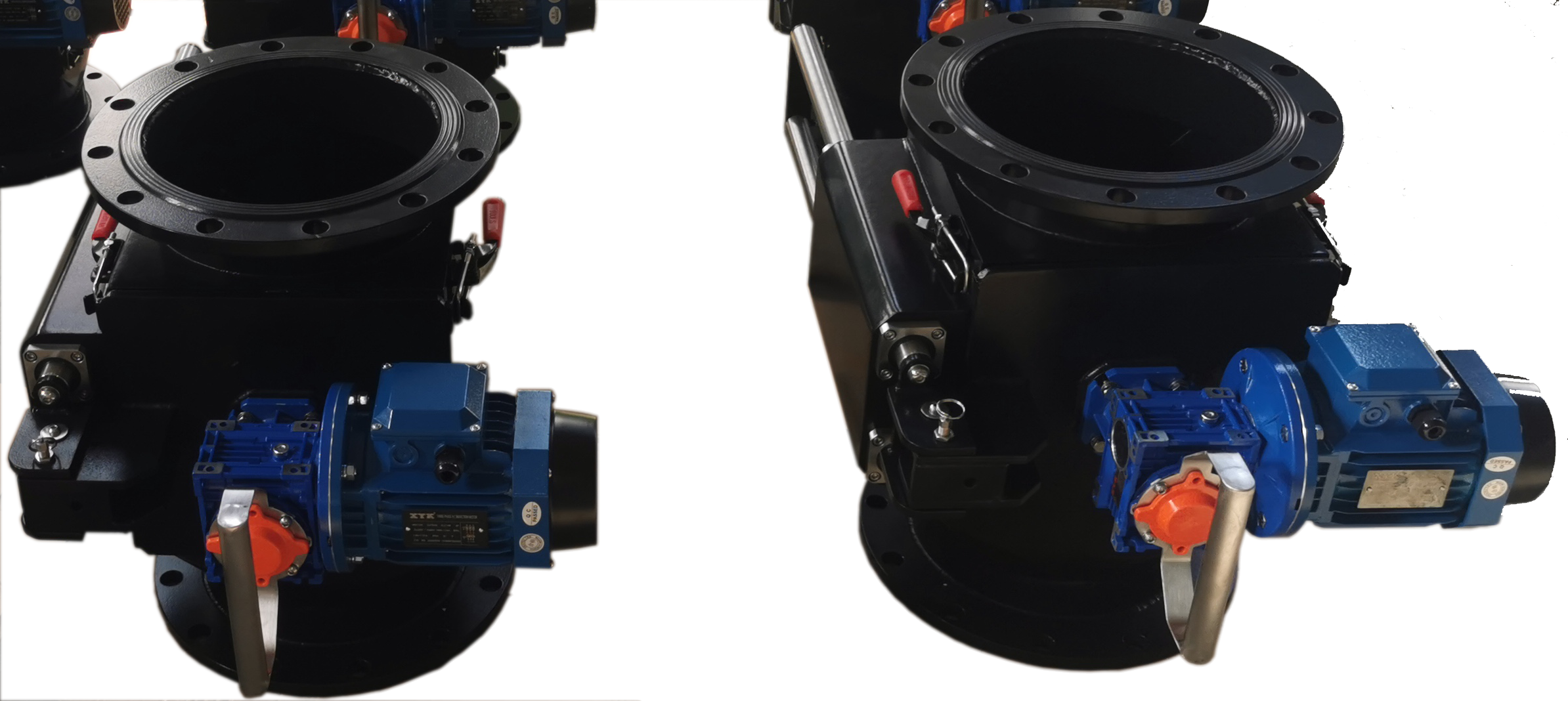

rotating permanent magnet iron remover, the magnetic rod is installed on the concentric circumference, and it is rotated by a reduction motor. Flanges, metal throat hoops, silicone hoses, etc. of the equipment can be connected to the pipeline of the production line. The materials pass through free fall from top to bottom. When the materials pass through, the rotating magnetic rod can better and fully contact the materials.

the magnetic rod and motor are installed on the linear slide rail. When cleaning, pull the slide rail to pull the magnetic rod out of the overcurrent channel for cleaning.

, a non-magnetic sleeve can also be added outside the magnetic rod. When cleaning, the sleeve can be removed, and magnetic foreign matter can fall off, thus improving cleaning efficiency.





characteristics

1. Compared with drawer-type permanent magnet iron remover, rotary iron remover is more suitable for materials with viscosity or poor fluidity that are easy to agglomerate, bridge and block;

2. As the magnetic rod is in a rotating state during the falling process of the material, the magnetic foreign matter can fully contact the magnetic rod and improve the demagnetization efficiency;

3. The drawer door panel is sealed with silica gel strip and locked with quick-opening quick clamp to ensure the tightness of the material pipeline;

4. The pipeline connection can be designed according to the customer's requirements, and the customer's on-site surveying and mapping can be carried out and the design scheme can be provided;

5. ETFE/PTFE can be sprayed on the flow channel according to customer requirements with a thickness of 0.2-0.3mm to reduce the risk of introduction of magnetic foreign matter at the back end.









parameter

1. Select a magnetic bar type (see the magnetic bar specification table).

2. Material: SUS304/SUS316L
